Name: Ace Controls SC300-8 Shock Absorber, Piston Tube Design, 650 in/lb Energy Cap [New]
Brand: Ace Controls
SKU: B2E-STA-00242
Price: 188.22 USD
Availability: InStock

Overview
Other Details

Product Description

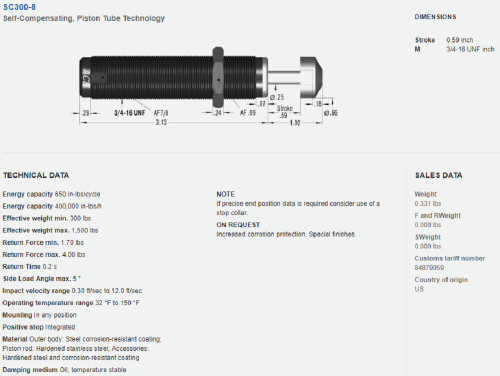

Energy capacity 650 in-lbs/cycle, Energy capacity 400,000 in-lbs/h. Effective weight min. 300 lbs, Effective weight max. 1,500 lbs. Return Force min. 1.70 lbs, Return Force max. 4.00 lbs. Return Time 0.2 s. Side Load Angle max. 5 deg. SC300-8 Piston tube design for maximum energy absorption, Self-Compensating, Piston Tube Technology, Energy capacity 650 in-lbs/cycle, Stroke 0.59 inch - Added safety with accumulator technology: The larger 'soft contact' models from the SCÂ²300 to SCÂ²650 are available with up to three times the energy absorption compared to similar sizes of standard shock absorbers SC190 to SC925, due to the ACE piston tube specialty. Furthermore, the membrane accumulator serves as a compensation element for the oil displaced in the shock absorber and replaces the standard use of absorber materials. This increases process safety even further. The shock absorbers, which are perfect for rotary actuators for example, are available in progressively stepped effective weight ranges with an integrated positive stop. They are maintenance-free and ready for direct installation. The side load adapter option allows impact angles of up to 25deg. They offer soft contact deceleration where initial impact reaction forces are very low, with the advantages of self-compensation to react to changing energy conditions, without adjustment. These miniature shock absorbers offer high performance levels with a long service life and are particularly popular for material handling, mounting very close to pivots and automation tasks.. Ace Controls. Ace Controls Inc. SC300-8.
