Name: Belimo AF24 US HVAC Damper Actuator, On-off, Spring Return Fail-Safe, 24 V [New]
Brand: Belimo
SKU: IY-OZZQ-S22N
Price: 361.61 USD
Availability: OutOfStock

Overview
Other Details

Product Description

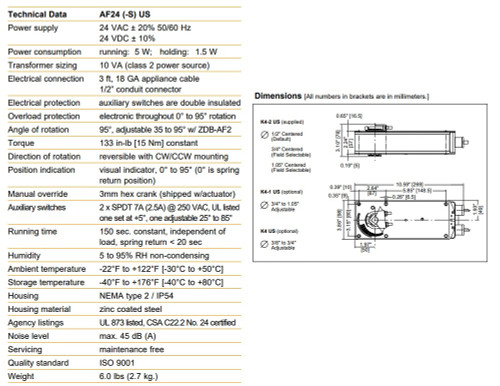

. . . . . Belimo AF24-S US HVAC Damper Actuator, On-off, Spring Return Fail-Safe, 24 V - Application - For on-off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturerâ€™s specifications. Control is on-off from an auxiliary contact, or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05â€ in diameter by means of its universal clamp. A crankarm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Operation - The AF series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator. The AF series provide 95Â° of rotation and are provided with a graduated position indicator showing 0Â° to 95Â°. The AF has a unique manual positioning mechanism which allows the setting of any damper position within its 95Â° of rotation. The AF series actuators are shipped at +5Â° (5Â° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off. When power is applied to the AF series, the manual mechanism is released. The actuators will now try to close against the 0Â° position during its normal control operations. The manual override can also be released physically by the use of a crank supplied with the actuator. The AF uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuatorâ€™s rotation and provides a digital rotation sensing function to prevent damage to the actuator in a stall condition. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AF24-S US version is provided with 2 built in auxiliary switches. These SPDT switches are provided for safety interfacing or signaling, for example, for fan start-up. The switching function at the fail-safe position is fixed at +5Â°, the other switch function is adjustable between +25Â° to +85Â°.. Belimo. Belimo. AF24 US.

Other Details

B2E Surplus offers a 90-day warranty on all sales. Warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. Subject to the exclusions described below, all B2E Surplus products (Products) are warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. EXCLUSIVE REMEDY. In the event that B2E Surplus determines that a Product contains a defect in materials or workmanship, then B2E Surplus, in its sole discretion, will (a) repair the Product, (b) replace the Product, or (c) refund the purchase price of the Product. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REMEDY OF REPAIR, REPLACEMENT OR REFUND IS BUYERS SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. IN NO EVENT SHALL B2E SURPLUS LIABILITY UNDER THIS WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT GIVING RISE TO THE WARRANTY CLAIM. All Products which are repaired or replaced shall be warranted only for the unexpired portion of the original warranty period. EXCLUSIONS. This warranty does not cover (a) any failures which are not attributable to defects in materials or workmanship, including without limitation, failures caused by accidents, inadequate maintenance, misuse, unauthorized modifications or repairs, improper storage, and normal wear and tear, (b) any consumable parts or accessories, such as cutter blades, nut splitter chisels, punches, dies, chains, wedges, and strands, that are designed to wear over time or through use of the Product, or (c) electronics, motors, batteries, and engines, as these items are warranted by their manufacturer. WARRANTY RETURNS. No Products shall be returned without prior authorization from B2E Surplus. Buyer shall prepay all shipping charges for the return of Products to B2E Surplus designated service location. LIMITATION OF LIABILITY. IN NO EVENT SHALL B2E SURPLUS BE LIABLE FOR ANY INCIDENTAL DAMAGES, CONSEQUENTIAL DAMAGES, SPECIAL DAMAGES, INDIRECT DAMAGES, LOSS OF PROFITS, LOSS OF REVENUES, OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. B2E SURPLUS' LIABILITY FOR DAMAGES ARISING OUT OF OR RELATED TO ANY ORDER IS LIMITED TO THE ORDER PRICE FOR THE SPECIFIC PRODUCT THAT GIVES RISE TO THE CLAIM. TO THE EXTENT PERMITTED BY APPLICABLE LAW, THESE LIMITATIONS AND EXCLUSIONS SHALL APPLY REGARDLESS OF WHETHER LIABILITY ARISES FROM BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE), BY OPERATION OR LAW, OR OTHERWISE.
