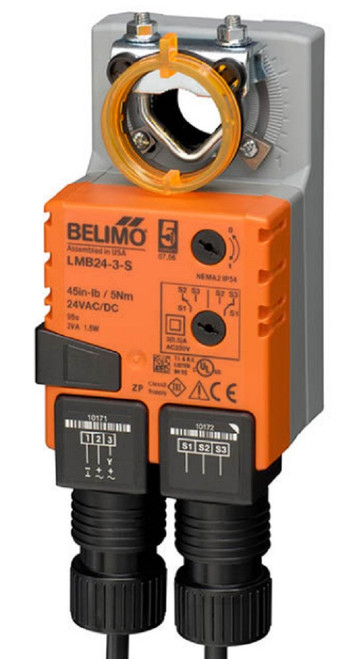

Name: Belimo LMB24-3.1 Damper Actuator, 45 in-lb, On/Off, Floating, Non-Spring Return [New]
Brand: Belimo
SKU: XTK-C5R-7CY
Price: 67.69 USD
Availability: InStock

Overview
Other Details

Product Description

Same As LMB24-3 - The .1 suffix indicates bulk packaging.. On/Off, Floating Point, Non-Spring Return, 24 V. Torque min. 45 in-lb for control of damper surfaces up to 11 sq ft. Power Supply 24 VAC Â± 20% 50/60 Hz, 24 VDC Â± 10%. Power Consumption 1.5 W (0.2 W), Transformer Sizing 2.5 VA (Class 2 power source). APPLICATION: For On/Off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturerÂ's specifications. The actuator is mounted directly to a damper shaft from 1/4Â" up to 5/8Â" in diameter by means of its standard universal clamp. Shafts up to 3/4Â" diameter can be accommodated by an accessory clamp. OPERATION: The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement. The LMB series provides 95Â° of rotation and a visual indicator which indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be disengaged with manual release on the actuator cover. The LMB24-3Â... actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuatorÂ's rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode. The LMB24-3-S version is provided with one built-in auxiliary switch. This SPDT switch is provided for safety interfacing or signaling, for example, for fan start-up. The switching function is adjustable 0 to 95Â°. The auxiliary switch is double insulated so an electrical ground connection is not necessary. Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.. Belimo. Belimo. LMB24-3.

Other Details

B2E Surplus offers a 90-day warranty on all sales. Warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. Subject to the exclusions described below, all B2E Surplus products (Products) are warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. EXCLUSIVE REMEDY. In the event that B2E Surplus determines that a Product contains a defect in materials or workmanship, then B2E Surplus, in its sole discretion, will (a) repair the Product, (b) replace the Product, or (c) refund the purchase price of the Product. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REMEDY OF REPAIR, REPLACEMENT OR REFUND IS BUYERS SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. IN NO EVENT SHALL B2E SURPLUS LIABILITY UNDER THIS WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT GIVING RISE TO THE WARRANTY CLAIM. All Products which are repaired or replaced shall be warranted only for the unexpired portion of the original warranty period. EXCLUSIONS. This warranty does not cover (a) any failures which are not attributable to defects in materials or workmanship, including without limitation, failures caused by accidents, inadequate maintenance, misuse, unauthorized modifications or repairs, improper storage, and normal wear and tear, (b) any consumable parts or accessories, such as cutter blades, nut splitter chisels, punches, dies, chains, wedges, and strands, that are designed to wear over time or through use of the Product, or (c) electronics, motors, batteries, and engines, as these items are warranted by their manufacturer. WARRANTY RETURNS. No Products shall be returned without prior authorization from B2E Surplus. Buyer shall prepay all shipping charges for the return of Products to B2E Surplus designated service location. LIMITATION OF LIABILITY. IN NO EVENT SHALL B2E SURPLUS BE LIABLE FOR ANY INCIDENTAL DAMAGES, CONSEQUENTIAL DAMAGES, SPECIAL DAMAGES, INDIRECT DAMAGES, LOSS OF PROFITS, LOSS OF REVENUES, OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. B2E SURPLUS' LIABILITY FOR DAMAGES ARISING OUT OF OR RELATED TO ANY ORDER IS LIMITED TO THE ORDER PRICE FOR THE SPECIFIC PRODUCT THAT GIVES RISE TO THE CLAIM. TO THE EXTENT PERMITTED BY APPLICABLE LAW, THESE LIMITATIONS AND EXCLUSIONS SHALL APPLY REGARDLESS OF WHETHER LIABILITY ARISES FROM BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE), BY OPERATION OR LAW, OR OTHERWISE.
