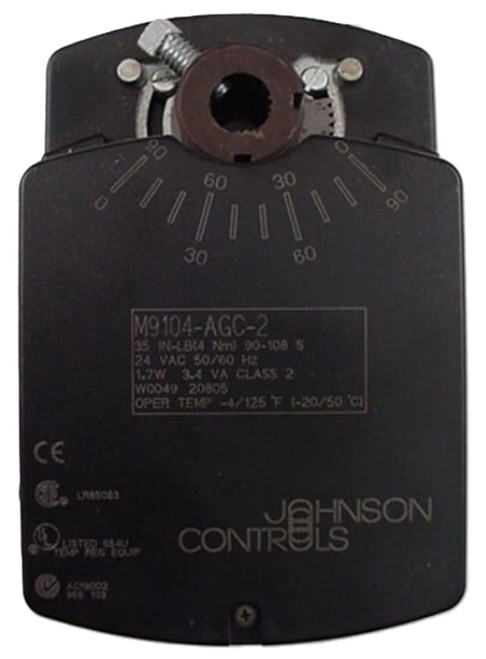

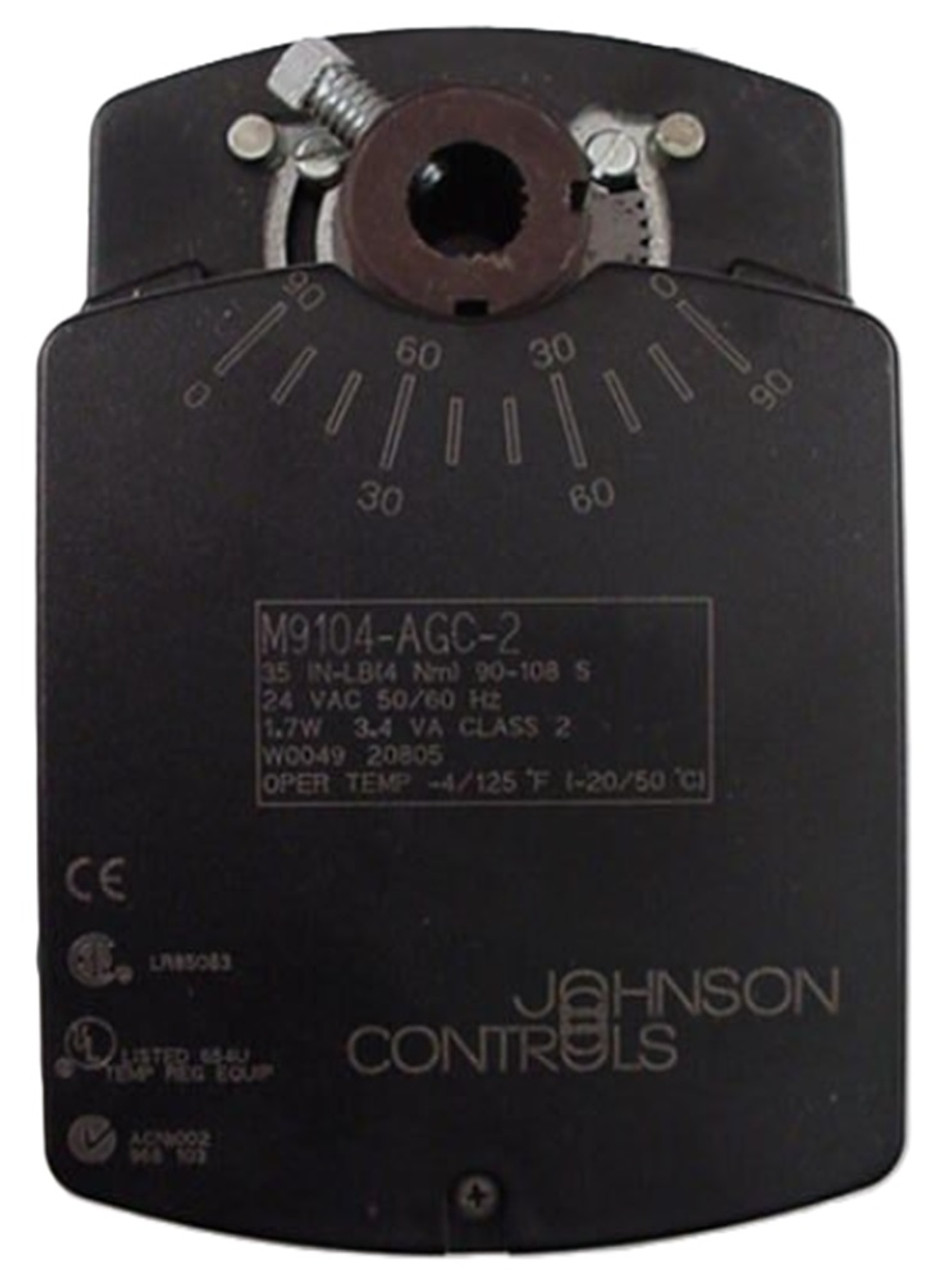

Name: Johnson Controls M9104-AGC-2 Electric Motor Actuator, 35 in-lb 4Nm, 90-108s [New]
Brand: Johnson Controls
SKU: B2E-TRO-21473
Price: 268.89 USD
Availability: InStock

Overview
Other Details

Product Description

. . . . . Johnson Controls M9104-AGC-2 Electric Motor Actuator, 35 in-lb 4Nm, 90-108s, 24VAC 50/60Hz, Incr Floating, 2 Aux Switches

The M9102 and M9104 Series Actuators are direct-mount, non-spring return electric actuators that operate on AC 24 V power. These synchronous motor-driven actuators provide floating control (AGA), floating control with automatic shut-off (IGA), and proportional control with selectable DC 0...10 V or DC 2...10 V (GGA). The -2S models are equipped with plenum cables, and the -3S models are equipped with terminal blocks.

All models are compact in size, and are easily installed on Variable Air Volume (VAV) boxes, Variable Volume and Temperature (VVT) twoposition zone applications, or small- to medium-sized dampers with a round shaft up to 1/2 in. (13 mm) in diameter or a 3/8 in. (10 mm) square shaft.

The M9102 Series Electric Non-Spring Return Actuators provide a running torque of 18 lb·in (2 N·m), and the nominal travel time is 30 seconds at 60 Hz (36 seconds at 50 Hz) for 90° of rotation. The M9104 Series Electric Non-Spring Return Acuators provide a running torque of 35 lb·in (4 N·m), and the nominal travel time is 60 seconds at 60 Hz (72 seconds at 50 Hz) for 90° of rotation.. Johnson Controls. Johnson Controls. M9104-AGC-2.
