Name: Johnson Controls M9208-AGA-3 Electric Spring-Return Actuator, 70Lb-In, Floating [New]
Brand: Johnson Controls
SKU: B2E-TRO-21528
Price: 278.16 USD
Availability: InStock

Overview
Other Details

Product Description

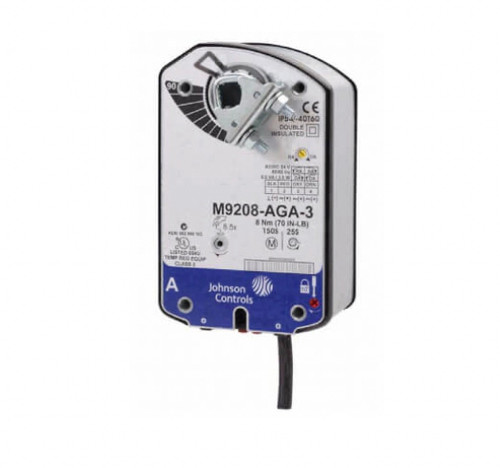

. . . . . Johnson Controls M9208-AGA-3 Electric Spring-Return Actuator, 70Lb-In, Floating Pt, Ac/Dc 24V

The M9208-AGx-x Series On/Off and Floating Point Electric Spring Return Actuators are direct-mount actuators that operate on AC/DC 24 V power. These bidirectional actuators do not require a damper linkage, and are easily installed on round shafts from 5/16to5/8in.(8to16mm) or square shafts from 1/4to1/2in.(6to12mm) using the standard shaft clamp included with the actuator. An optional M9208-600 Large Coupler Kit is available for round shafts from 1/2 to 3/4in.(12to19mm) or square shafts from 3/8to9/16in.(10to14mm). A single M9208-AGx-x Series On/Off and Floating Point Electric Spring Return Actuator provides 70lb·in.(8N·m) running and spring return torque. Integral line voltage auxiliary switches, available only on the M9208-xxC-3 models, indicate end-stop position, or perform switching functions within the selected rotation range. M9208-AGA-2 actuators include plenum-rated cables and are specially configured for installation in spaces used for environmental air-handling purposes other than ducts and plenums as specified in National Fire Protection Association (NFPA) 70: National Electrical Code section 300.22(C), Other Space Used for Environmental Air. The space over a hung ceiling used for environmental air handling purposes is an example of the type of space for which these actuators are configured.. Johnson Controls. Johnson Controls. M9208-AGA-3.

Other Details

B2E Surplus offers a 90-day warranty on all sales. Warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. Subject to the exclusions described below, all B2E Surplus products (Products) are warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. EXCLUSIVE REMEDY. In the event that B2E Surplus determines that a Product contains a defect in materials or workmanship, then B2E Surplus, in its sole discretion, will (a) repair the Product, (b) replace the Product, or (c) refund the purchase price of the Product. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REMEDY OF REPAIR, REPLACEMENT OR REFUND IS BUYERS SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. IN NO EVENT SHALL B2E SURPLUS LIABILITY UNDER THIS WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT GIVING RISE TO THE WARRANTY CLAIM. All Products which are repaired or replaced shall be warranted only for the unexpired portion of the original warranty period. EXCLUSIONS. This warranty does not cover (a) any failures which are not attributable to defects in materials or workmanship, including without limitation, failures caused by accidents, inadequate maintenance, misuse, unauthorized modifications or repairs, improper storage, and normal wear and tear, (b) any consumable parts or accessories, such as cutter blades, nut splitter chisels, punches, dies, chains, wedges, and strands, that are designed to wear over time or through use of the Product, or (c) electronics, motors, batteries, and engines, as these items are warranted by their manufacturer. WARRANTY RETURNS. No Products shall be returned without prior authorization from B2E Surplus. Buyer shall prepay all shipping charges for the return of Products to B2E Surplus designated service location. LIMITATION OF LIABILITY. IN NO EVENT SHALL B2E SURPLUS BE LIABLE FOR ANY INCIDENTAL DAMAGES, CONSEQUENTIAL DAMAGES, SPECIAL DAMAGES, INDIRECT DAMAGES, LOSS OF PROFITS, LOSS OF REVENUES, OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. B2E SURPLUS' LIABILITY FOR DAMAGES ARISING OUT OF OR RELATED TO ANY ORDER IS LIMITED TO THE ORDER PRICE FOR THE SPECIFIC PRODUCT THAT GIVES RISE TO THE CLAIM. TO THE EXTENT PERMITTED BY APPLICABLE LAW, THESE LIMITATIONS AND EXCLUSIONS SHALL APPLY REGARDLESS OF WHETHER LIABILITY ARISES FROM BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE), BY OPERATION OR LAW, OR OTHERWISE.
