Name: Johnson Controls M9220-BDA-3 Spring Return Electric Actuator, On/Off, 177 in-lb [New]
Brand: Johnson Controls
SKU: B2E-TRO-21544
Price: 352.34 USD
Availability: InStock

Overview
Other Details

Product Description

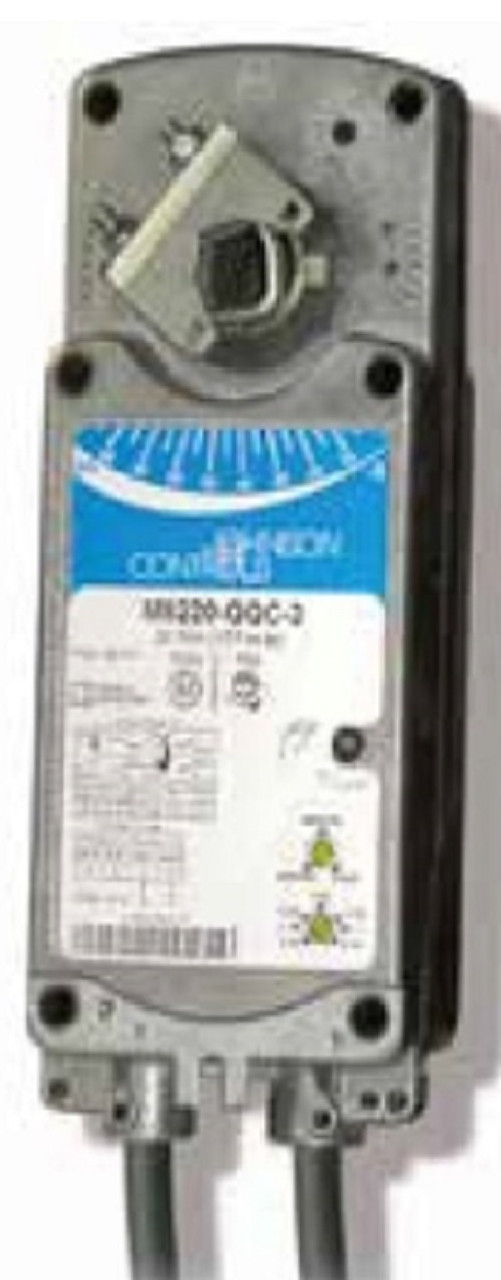

. . . . . Johnson Controls M9220-BDA-3 Spring Return Electric Actuator, On/Off, 177 in-lb, 24 to 57 Second Run Time, 11 to 15 Second Spring Return, 230 VAC, NEMA 2, 48" (1.2 m) 18 AWG Appliance Cable, Integral 3/8" (10 mm) FMC Connectors

The M9220-xxx-3 actuators are direct-mount, spring-return electric actuators that operate with these available power options: AC 24 V at 50/60 Hz or DC 24 V, (AGx, BGx, GGx, HGx), AC 120 V at 60 Hz (BAx), AC 230 V at 50/60 Hz (BDx)

These bidirectional actuators do not require a damper linkage, and are easily installed on dampers with 1/2 to 3/4 in. or 12 to 19 mm round shafts, or 3/8 and 1/2 in. or 10, 12, and 14 mm square shafts using the standard shaft clamp included with the actuator. An optional M9220-600 Jackshaft Coupler Kit is available for 3/4 to 1-1/16 in. or 19 to 27 mm round shafts, or 5/8 and 3/4 in. or 16, 18, and 19 mm square shafts.

A single M9220-xxx-3 Electric Spring-Return Actuator provides a running and spring-return torque of 177 lb·in (20 N·m). Two or three models mounted in tandem deliver twice or triple the torque. Integral line voltage auxiliary switches are available on the -xxC models to indicate end-stop position or to perform switching functions within the selected rotation range.

Refer to the M9220-xxx-3 Electric Spring-Return Actuators Product Bulletin (LIT-12011057) for important product
application information and single point of contact information. Applications The M9220-xxx-3 Electric Spring-Return
Actuators provide reliable control of dampers and valves in HVAC systems. The M9220-xxx-3 Actuators are available for use with on/off, floating, and proportional controllers.

Available torques of 177 lb·in (20 N·m) for single actuators, 354 lb·in (40 N·m) for two models, and 531 lb·in (60 N·m) for three models mounted in tandem-offer a selection that is most suitable for the application.

Reversible mounting design-simplifies installation and enables the actuator to spring return in either direction.

Electronic stall detection throughout entire rotation range-extends the life of the actuator by deactivating the actuator motor when an overload condition is detected.

Removable coupler-adapts to a shorter damper shaft.

Integral 48 in. (1.2 m) halogen-free cables with colored and numbered conductors-simplify field wiring.

Integral auxiliary switches (xxC Models)-provide one fixed and one adjustable switch point with line voltage capability.

NEMA 2 (IP54) rated aluminum enclosure-protects the internal components of the actuator from dirt and moisture.

Easy-to-use locking manual override with auto release and crank storage-allows for manual positioning of the actuator hub.

Integral connectors for 3/8 in. flexible metal conduit-simplify installation and field wiring.

Microprocessor-controlled brushless DC motor (-AGx, -GGx, and -HGx types)-provides constant run-time independent of
torque. Johnson Controls. Johnson Controls. M9220-BDA-3.
