Name: KB Electronics KBIC-125 9433B SCR DC Motor Speed Control, 115VAC Line Voltage [New]
Brand: KB Electronics
SKU: SBG14001543
Price: 137.23 USD
Availability: InStock

Overview
Other Details

Product Description

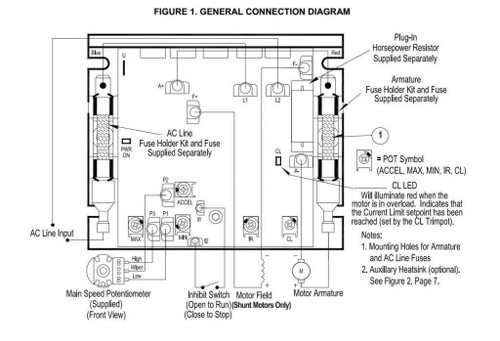

AC Line Voltage (VAC) +/- 15% 50/60Hz: 115. Motor Voltage (VDC) 3: 0-90. Rating Without Auxillary Heat Sink: 12.0 Max AC Load Current RMS Amps, 8.0 Max DC Load Current Avg Amps, 0.75 Max HP. Rating With Aux Heat Sink: 24.0 Max AC Load Current RMS Amps, 16.0 Max DC Load Current Avg Amps, 1.5 Max HP. Field Voltage (Shunt Wound Motor Only) (VDC): 50, 100. THIS DRIVE WILL NOT OPERATE WITHOUT A PLUG-IN HORSEPOWER RESISTOR. Horsepower resistors are available for purchase from our Amazon store. The KBIC-125 Adjustable Speed DC Drive will control motors between 1/100-3/4 HP (1.5 HP w/aux. Heat-sink) by inserting the proper Plug-in Horsepower ResistorÂ®. The KBIC-125 motor speed control is designed for 90 VDC PM & Shunt motors. Speed range is 50:1 with load regulation of 1%. Features include Auto InhibitÂ®, Voltage Following, MOV transient protection, 5K speed pot and trimpot adjustments for Min, Max, Accel, IR and CL. Options include Auxiliary heat sink, AC Line and Armature Fuse Kit, Barrier Terminal Board, RFI/EMI filters and Signal Isolation (model SI-5). This control is available worldwide from stocking KB distributors. UL, CSA, CE, C-tick. The speed controls are designed for applications demanding good performance, high reliability and low cost. The controls are fabricated with components that have proven reliability, including MOV transient protection, which is used to protect the Power Bridge. Integrated circuitry is used to provide an uncomplicated design with superior load and line voltage regulation. The Direct-Fedâ"¢ current limit circuit protects the motor andcontrol against overloads by limiting the maximum level of output current. It also prevents motor failure due to demagnetization of the magnets of PM motors. Acceleration start (adjustable from 0.5 to 4 seconds) provides a smooth start each time the AC power is applied. A unique feature of the KBICÂ® control is the Plug-in Horsepower ResistorÂ® . It eliminates the need to recalibrate IR Comp. and CL when the control is used over a wide range of motor horsepower. Additional versatility is achieved by using the Auxiliary Heat Sink (optional) which is used to double the horsepower rating of each model. The output of the control is a linear function of potentiometer rotation.. KB Electronics. KB Electronics. KBIC-125.

Other Details

B2E Surplus offers a 90-day warranty on all sales. Warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. Subject to the exclusions described below, all B2E Surplus products (Products) are warranted to be free from defects in materials and workmanship under normal use and service. Unless otherwise set forth in a quotation or agreed to by B2E Surplus in writing, standard Products are warranted for 90 days from the date of delivery to the buyer. EXCLUSIVE REMEDY. In the event that B2E Surplus determines that a Product contains a defect in materials or workmanship, then B2E Surplus, in its sole discretion, will (a) repair the Product, (b) replace the Product, or (c) refund the purchase price of the Product. THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE REMEDY OF REPAIR, REPLACEMENT OR REFUND IS BUYERS SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. IN NO EVENT SHALL B2E SURPLUS LIABILITY UNDER THIS WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT GIVING RISE TO THE WARRANTY CLAIM. All Products which are repaired or replaced shall be warranted only for the unexpired portion of the original warranty period. EXCLUSIONS. This warranty does not cover (a) any failures which are not attributable to defects in materials or workmanship, including without limitation, failures caused by accidents, inadequate maintenance, misuse, unauthorized modifications or repairs, improper storage, and normal wear and tear, (b) any consumable parts or accessories, such as cutter blades, nut splitter chisels, punches, dies, chains, wedges, and strands, that are designed to wear over time or through use of the Product, or (c) electronics, motors, batteries, and engines, as these items are warranted by their manufacturer. WARRANTY RETURNS. No Products shall be returned without prior authorization from B2E Surplus. Buyer shall prepay all shipping charges for the return of Products to B2E Surplus designated service location. LIMITATION OF LIABILITY. IN NO EVENT SHALL B2E SURPLUS BE LIABLE FOR ANY INCIDENTAL DAMAGES, CONSEQUENTIAL DAMAGES, SPECIAL DAMAGES, INDIRECT DAMAGES, LOSS OF PROFITS, LOSS OF REVENUES, OR LOSS OF USE, EVEN IF INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. B2E SURPLUS' LIABILITY FOR DAMAGES ARISING OUT OF OR RELATED TO ANY ORDER IS LIMITED TO THE ORDER PRICE FOR THE SPECIFIC PRODUCT THAT GIVES RISE TO THE CLAIM. TO THE EXTENT PERMITTED BY APPLICABLE LAW, THESE LIMITATIONS AND EXCLUSIONS SHALL APPLY REGARDLESS OF WHETHER LIABILITY ARISES FROM BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE), BY OPERATION OR LAW, OR OTHERWISE.
