Product Description

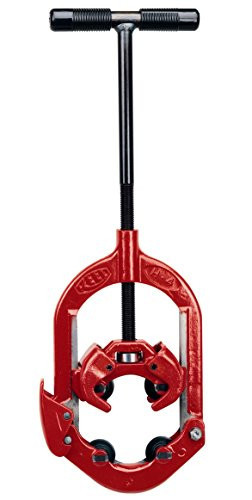

Catalog No.: H8XX. Item Code: 03146. Pipe Capacity: 6 - 8 (in-nom.) / 168 - 240 (actual O.D. mm). Cutter Wheel: HXX8. Application: Steel/Stainless Steel Sch. 40, 80, 100. Reed H8XX 03146 6 - 8 Inch Hinged Pipe Cutter for Steel/Stainless Steel Sch. 40, 80, 100. Another Reed invention that needs only 4†(102 mm) of clearance around pipe. Efficient handle swing of only 90 deg to 110 deg. Can be used anywhere - in the ditch, underwater, overhead, in racks of pipe! SPECIFICATIONS: Catalog No.: H8XX. Item Code: 03146. Pipe Capacity: 6 - 8 (in-nom.) / 168 - 240 (actual O.D. mm). Cutter Wheel: HXX8. Application: Steel/Stainless Steel Sch. 40, 80, 100. Length: 32 (in) / 813 (mm). Weight: 24.4 (lb) / 11.1 (kg).. Reed Tool. Reed Tool. H8XX.
