Product Description

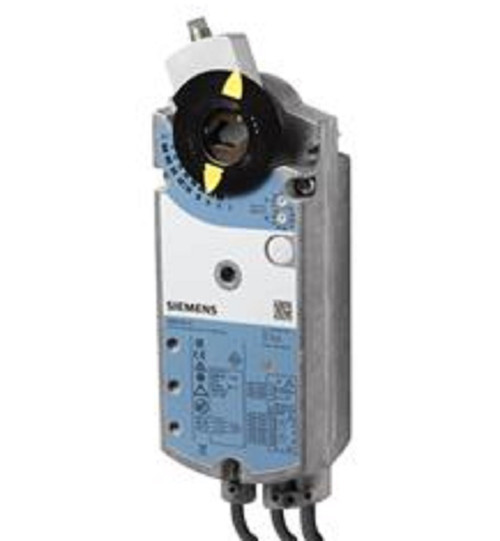

Torque: 15 Nm. Air damper area: 3 m². Angular rotation: 90 deg. Power consumption: 3 VA, 3 W. Positioning time: 150 s. Siemens GEB336.1E Rotary Air Damper Actuator, AC 230 V, 3-Position, 15 Nm, 150 s, 2 Auxiliary Switches
With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
With position indication and adjustable mechanical limit stop
Button for disengaging the gear train to enable manual control
With housing made of die-cast aluminum and 0.9 m connecting cable
Positioning signal: 3-position
Degree of protection: IP54
Ambient temperature, operation: -32...55 °C
Medium temperature: -32...55 °C
Ambient humidity, operation: 95 % r.h.
Dimensions (W x H x D): 81 x 212 x 63 mm
Operating voltage: AC 230 V
Auxiliary switch: 2. Siemens. Siemens. GEB336.1E.
