Teguar TRT-5380-12 12.2" Heavy Duty Tablet, w/ Windows 10 Pro and Car Charger [New]

Overview
Other Details

Product Description

. . . . . Each Set Includes: Tablet (Teguar# 1236-80) with Windows 10 Pro License (Teguar 4045-00) and car charger (Teguar# 3401-80)

Description
The TRT-5380-12 is a fanless rugged tablet with a 12" full HD touchscreen. It features the Intel Celeron N5100 Processor and is IP65 waterproof rated, as well as complying with MIL-STD-810G to ensure it is protected from accidental drops, falls, and shocks. This tablet comes with built-in WiFi, Bluetooth, GPS, and NFC, and has the option for a 1D/2D barcode scanner. The projected capacitive touchscreen is made with anti-scratch Gorilla Glass, so you can rest easy knowing your TRT-5380-12 can be safely operated by different users without sustaining damage.

Key Highlights
12.2" LCD Gorilla Glass Touchscreen
Intel Jasper Lake Quad-Core CPU
Wi-Fi, Bluetooth, GPS, and optional NFC
USB Type C, USB Type A, RS232 COM port
Pogo Pin Expansion for Docking stations
Direct VESA 100 Mountable

General
Main Category: Rugged Tablet PC

Primary Components
Processor Family: Intel Jasper Lake Quad-Core
Processor Model: N5100
Processor Speed: 1.1 GHz, Up to 2.8 GHz
Memory Type: Onboard DDR3L
Memory Support: 8GB
Storage type: Onboard eMMC Flash
Storage support: 128GB

Display
Screen Size: 12.2"
Resolution: 1920 x 1200 (WUXGA)
Screen Ratio: 16:10
Brightness: 650 nits

Touch Screen
Touch Screen: Projected Capacitive (Multi-touch)
Hardness: > 7H
Glass type: Gorilla Glass

External I/O ports
USB: 1x USB 2.0, 2x USB 3.0, 1x USB 3.0 type C
Serial / Com: 2x COM
Serial Protocol Detail: 1x RS-232 (2wire), 1x RS-485 (2wire)
Ethernet / LAN: 1x RJ45 GbE LAN
Video Outputs: 1x Mini HDMI
Docking Connector: Yes
Audio: 1x 3.5mm Headphone Jack
Power Input Port: 3.5mm DC-in Jack

Power
Input Voltage Range: 19V DC
Max Power consumption: 65W
Standard Power Adapter: 19V DC 3.42A 4.0mm with US AC Power Cord

Battery
Type: Hot Swappable 7.4V/6300mAh Battery, Internal 7.4V/1000mAh Battery
Operating Time: 6hrs
Quantity: 1x Internal Battery, 1x Removable Battery

Operating Systems
Windows 10 Pro

Compatibility
Security Hardware: TPM 2.0

Expansion Slots
video card support: Intel HD Graphics 515
SD card: 1x Micro SD Slot
Other: Pogo Pin Expansion

Multimedia
Speakers: 2x 1W Speakers
Camera: Front: 5MP, Rear: 8MP
Microphone: Built-in Microphone

Thermal and Environmental
Operating Temperature -20°C - 60°C (-4°F - 140°F)
Storage Temperature -30°C - 70°C (-22°F - 158°F)
Humidity Range 95% Non-condensing
Cooling Solution Passive - Fanless

Enclosure
Material: Double Injection
Ip Rating: IP65
Color: Black
Led Indicator Light: Charging Indicator, Power
Control Buttons: Audio Down, Audio Up, Power Button, Scanner
Programmable Function Buttons: 2x Programmable Function Keys
Shock Rating: MIL-STD-810G
Drop Rating: 4ft Drop Protection
Mounting Options: Forklift Mount, Vehicle Mount, VESA 100 Mount
Approved Cleaning Solutions: 3M HB Quat, Acetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex

Peripherals & Wireless Connectivity
WiFi: 802.11AC
BlueTooth: Bluetooth 5.1
GPS: yes
Mobile Network 4G LTE: Project Based
Mobile Network 5G: Project Based
Sim card: 1x Micro SIM Card Slot
Barcode Scanner: 1D/2D Barcode Scanner
RFID: Optional RFID Scanner (NFC 13.56 Mhz ISO/IEC 14443A/14443B/15693/18092/MiFare)
Peripheral Other: Keyboard; Kickstand; Cigarette adapter; Digitizer Pen; Handstrap; Desktop Dock; Vehicle Dock; Forklift Dock; Shoulder Strap; Back Strap; Mounts
Sensors Accelerometer, Light Sensor

Dimensions / Weight
Weight: 1.5 KG (3.3 lbs)

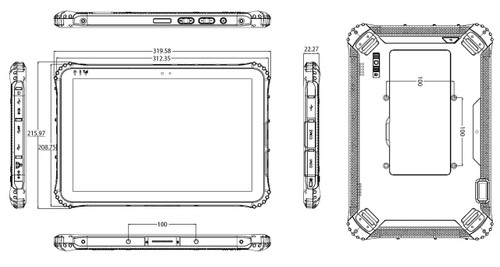

Dimensions: 319.6 x 216 x 23.4 mm (12.6 x 8.5 x 0.9 in). Teguar. Teguar. 1236-80.
